Computer Applications

Project Showcase


Project 1: Revit Modelling and Documentation

This project involves the production of Revit model of the selected architecture design using Architectural Components such as Wall, Roof, Stairs, Floor, Curtain Wall, Doors and Windows.

At the end of the project, the model shall be used to generate documentation drawings, using Revit Architecture’s Documentation Components such as Sheets, Titleblock, Sections, Room Tags, Schedule & etc.

Project 1: Work in Progress

This work in progress shows the progression of the revit model from the beginning stages all the way to the end. I modelled the selected building in 5 different parts so as to evenly split the load and focus on different aspects of my building each time I worked on the model itself

Part 1

6. Load Appropriate Concrete Column Family

1/1

Part 2

13. Load Appropriate Curtain Wall Door Family

1/1

Part 3

15.1.2 Create Reference Planes for Door Panel Thickness

15.1.3 Adjust Door Panel Thickness and Constrain Lock

17. Apply Top Constraint Onto All Walls Except Stairway Shaft

18. Copy Floor Slab and Align to First Floor Level

1/1

Part 4

21. Copy First Floor and Align to Roof Level

22. Edit Floor Boundary, Trim and Extend to Create Opening

25. Pick Lines Trim and Extend and Apply Top Level Constraint

28.1.2 Add 2 Reference Planes, Dimension Line and EQ

28.1.3 Create Extrusion, Offset 30mm, Constrain

28.1.4 Create Frame Extrusions, Constrain

28.1.5 Create Glass Extrusions, Constrain

30. Select Specific Columns and Attach Top Base to First Floor

1/1

Part 5

31. Start Creating Ramp Landing and Offset by 1600mm

37. Create Stair Boundary, Risers and Stair Path

38. Copy Stairs, Align to Basement and First Floor

39. Create Basement Walls, Door and Floor

40. Go to Material Browser, Change Default Material to White to Match Real Colour

42. Go to Material Browser, Duplicate Concrete Material, Change Colour to White

43. Go to Site View and Place Toposurface Points

1/1

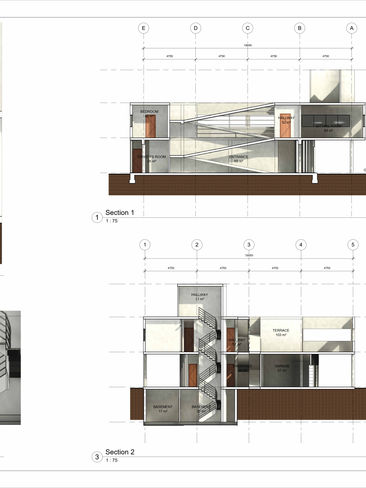

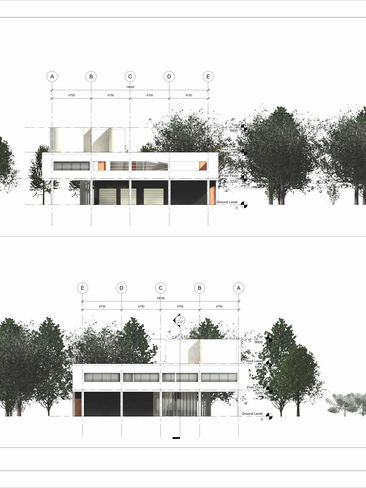

Project 1: Final Outcome

Project 2: Exterior and Interior Renderings

This project involves the production of photorealistic still renderings using 3DS Max of the selected architecture design with materials, appropriate camera views and post-production enhancement on the visual outcome.

The visualisation work would be assessed on the types and ways materials are used, types of lights and effects used to set up the scene, setup of appropriate camera views for rendering and skills of using post-production tools to enhance the visual outcome

Project 2: Work in Progress

9. Place Sun, Increase Radius to 100mm, Set North Offset to 210° for Accurate Lighting Based on Buil

10. Adjust Camera and Camera Target to Desired Height for Bird's Eye View

11. Adjust Camera Focal Length, Shutter and Exposure to Desired Values

12. Go to Render Set Up and Begin Final Exterior Render

13. Place Camera for Interior Render and Adjust to Eye Level

17. Go to Render Set Up and Begin Final Interior Render

18. Export Exterior Render to Photoshop for Postproduction (Human Figures, Birds, Sky)

19. Export Interior Render to Photoshop for Postproduction (Human Figures, Sky)

1/1

Project 2: Test Renders

To play, press and hold the enter key. To stop, release the enter key.

Project 2: Final Renders

Exterior

Interior

This module introduces students to the world of Computer Generated 3-Dimensional drawings. Students are encouraged to carry out self-research in regards to the other capabilities and more complicated features of 3DS Max and Revit Architecture. Students will also be taught the potential of “cross breeding” different software, in order to garner the necessary desired results for their visualisation work.
